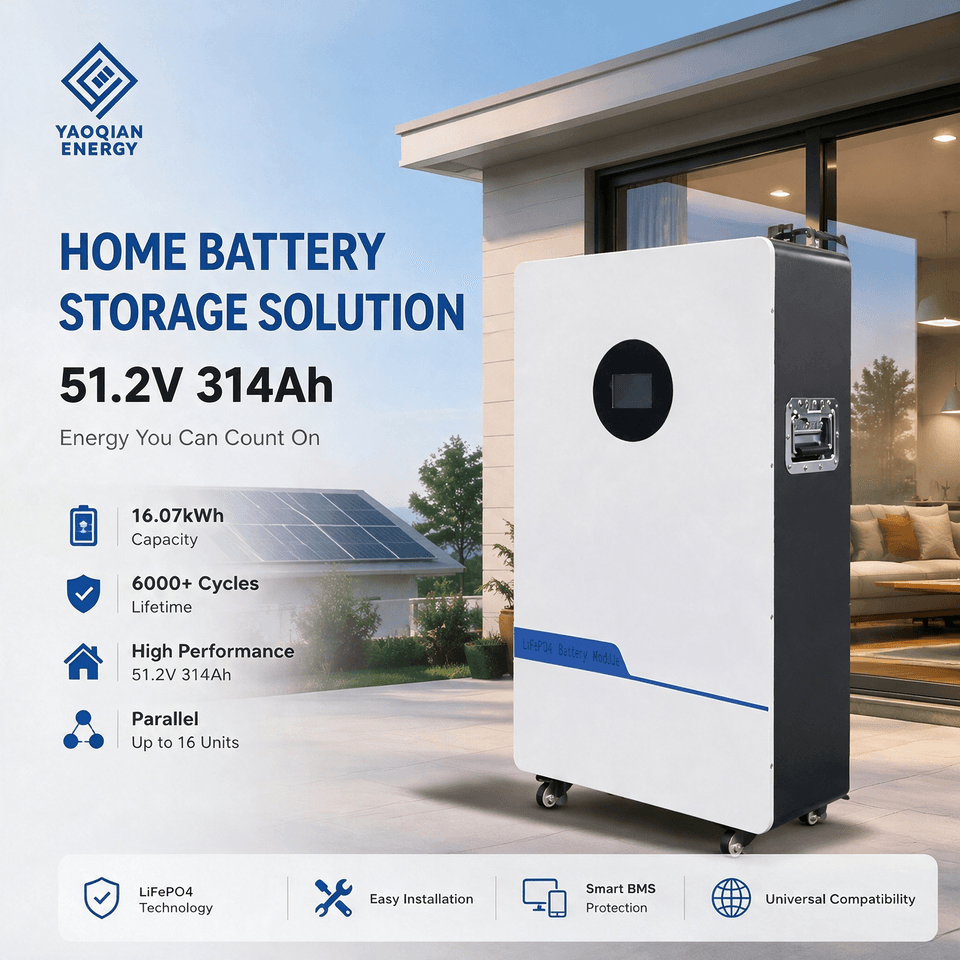

51.2V 314Ah 16kWh LiFePO4 Battery Energy Storage System Wall Mounted Residential Battery for Emergency Backup

From LFP cells to integrated ESS — full-spectrum lithium battery solutions engineered for reliability, safety and performance

51.2V 314Ah 16kWh LiFePO4 Battery Energy Storage System Wall Mounted Residential Battery for Emergency Backup

51.2V 314Ah 16kWh LiFePO4 Battery Energy Storage System Wall Mounted Residential Battery for Emergency Backup

51.2V 314Ah LiFePO₄ home battery with 16.07kWh capacity, 6000+ cycles, smart BMS protection, and flexible parallel expansion.

Specifications

Model

YQ-314W-LV

Nominal Voltage

51.2V

Nominal Capacity @ 1C

314Ah

Equalized Charge Voltage

58.4V

Discharge Cut-off Voltage

46V

Float Voltage

54V

Bulk Voltage

55.2–56.8V

Discharge Current Max Continuous

210A

Peak current 5 Min

314A

Weight

115 ± 0.3Kg

Dimensions

901*470*270mm

Key Features

1. High Capacity Energy Storage

Equipped with a 51.2V 314Ah LiFePO4 battery, providing reliable and long-lasting power for residential and commercial energy storage applications.

2. Long Cycle Life

Built with premium LiFePO4 cells, offering excellent cycle life and stable performance for years of daily use.

3. High Power Output

Supports up to 210A continuous discharge current and 314A peak discharge (5 min), suitable for high-load household appliances and backup power systems.

4. Superior Safety

LiFePO4 hemistry provides outstanding thermal stability, enhanced safety, and reduced risk of overheating compared with traditional lithium batteries.

5. Reliable Battery Management System (BMS)

Integrated smart BMS protects against overcharge, over-discharge, over-current, short circuit, and overheating, ensuring safe and efficient operation.
